Installing STEINBAUER PowerModules on a Yanmar 4JH45

Updated: Oct 26

Without a doubt the STEINBAUER PowerModules are one of our favorite upgrades on our Leopard 45 catamaran. Boosting the Yanmar 4JH45 engines up to around 60 HP, we're pleased with the improved fuel consumption and performance.

This video discusses the performance of the modules and how the installation works on a 4JH45 engine.

STEINBAUER Installation Photos

For more information, here are some detailed photos of the installation on the starboard engine of a Yanmar 4JH45, fitted to a 2022 Leopard 45 catamaran.

SIDE VIEW OF THE MODULE ON THE ENGINE:

STEINBAUER POWERMODULE catamaran installation

THE WIRING HARNESS RUNS FROM THE MODULE ALONGSIDE THE OEM CABLES. THE ONE HIGHLIGHTED BLUE IN THE DIAGRAM GOES TO THE INJECTORS, THE YELLOW TO THE POWER SUPPLY:

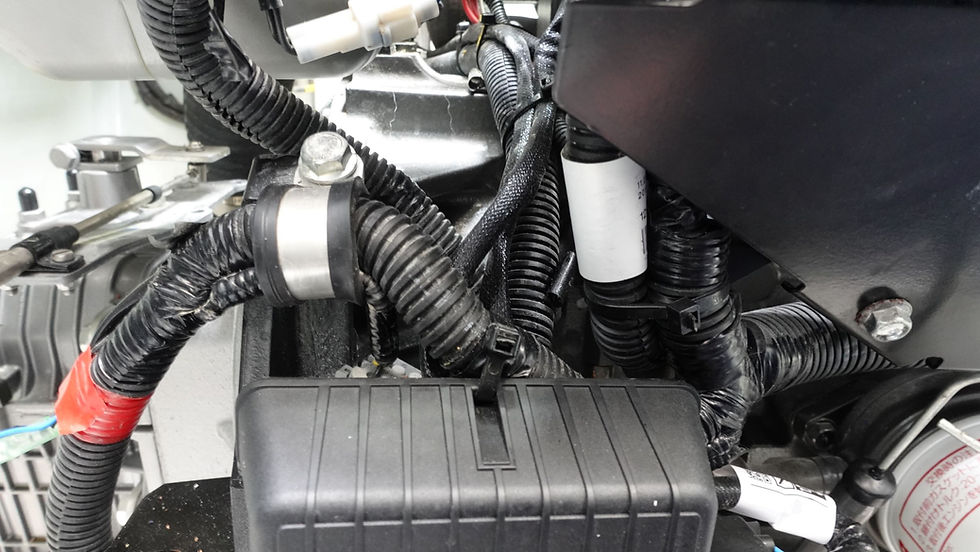

CABLE TIES ARE USED TO SECURE THE HARNESS AND ENSURE IT DOES NOT MOVE DURING OPERATION TO PREVENT VIBRATION AND WEAR ON THE CABLES:

THE TWO CABLES DIVERGE TO RUN TO THE INJECTORS ON TOP AND THE POWER SUPPLY ON THE SIDE:

THIS IS A SIDE VIEW OF WHERE THE CABLES DIVERGE; THE POWER SUPPLY CABLE CONTINUES FORWARD WHILE THE OTHER CABLE GOES UP TO THE INJECTORS:

THIS IS THE TOP VIEW OF WHERE THE CABLES DIVERGE. NOTE THE CABLE TIE SECURING THE BLUE HIGHLIGHTED CABLE:

TOP VIEW OF THE WIRING HARNESS CONNECTING TO THE INJECTORS. FOR INSTALLATION IT IS EASIEST TO START AT THE INJECTORS AND WORK YOUR WAY BACK, AS SEEN IN THE VIDEO.

THIS IS HOW THE STEINBAUER POWERMODULE CONNECTS TO THE INJECTORS. IT IS BEST TO WATCH THE VIDEO TO SEE THIS DEMONSTRATED.

BACK TO THE CABLES, THIS IS A TOP VIEW OF WHERE THE POWER CABLE GOES TO:

THIS CABLE RUNS FROM ONE SIDE OF THE ENGINE TO THE OTHER WITH THE OEM CABLES:

LOOKING AT THE SIDE, THIS LIGHT COLORED CABLE BUNCH IS NOT NECCESARY FOR MARINE ISNTALLATIONS SO IS NEATLY SECURED OUT OF THE WAY:

LOOKING AT THE OPPOSITE SIDE OF THE ENGINE TO THE MODULE, YOU WILL SEE WHERE THE WIRING HARNESS CONNECTS TO THE POWER SUPPLY:

Cable Management

Securing the cables is an essential part of this installation to minimise the risk of cable damage due to vibration and movement. It is a good idea to check the harness when the engine is under load and see if there are any areas of the wiring harness that need to be made more secure.
